TW-PicklePlug

TW-PP PicklePlug Motor Controller

Compact, lightweight local control for compatible entertainment hoists and motor-control systems.

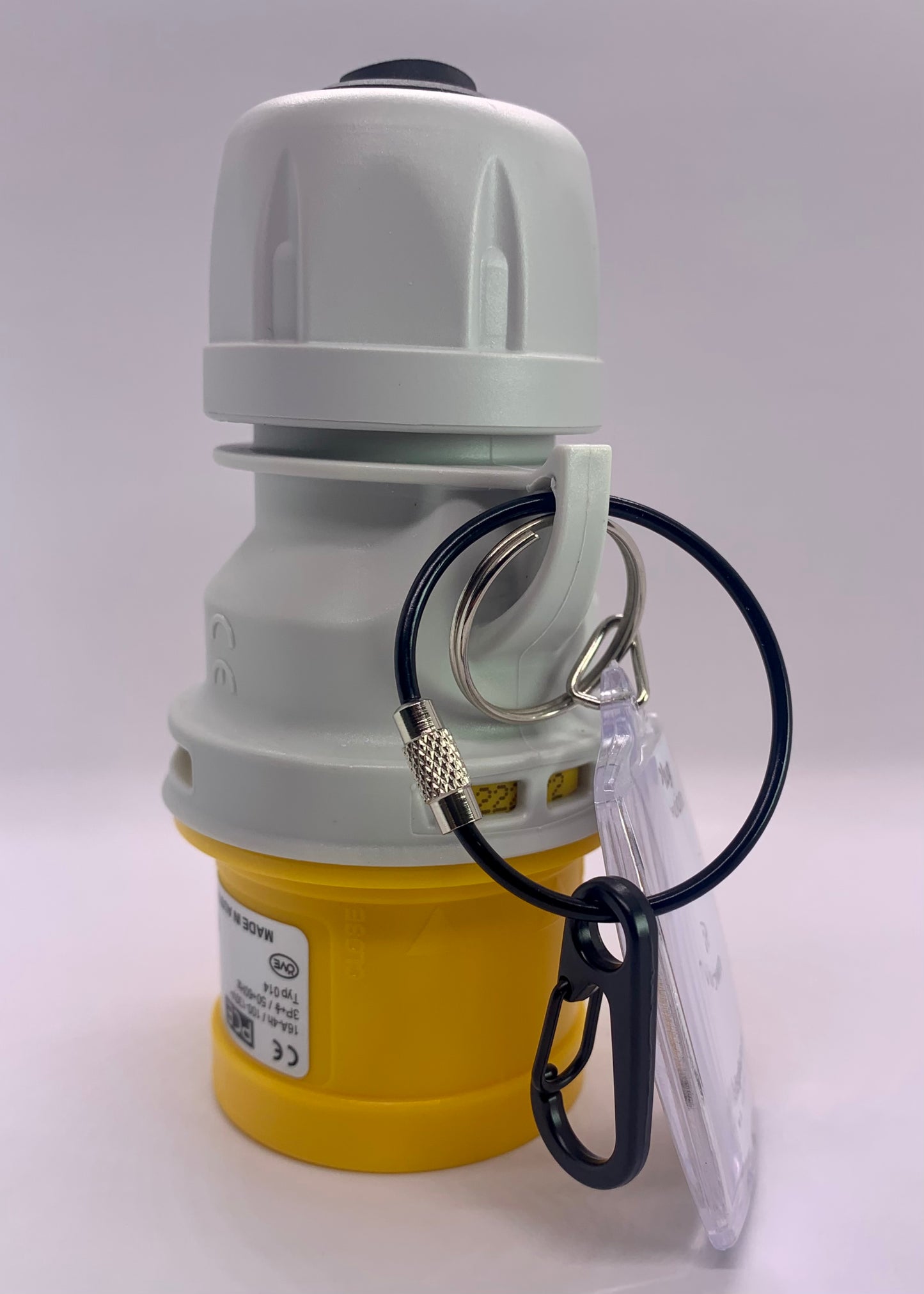

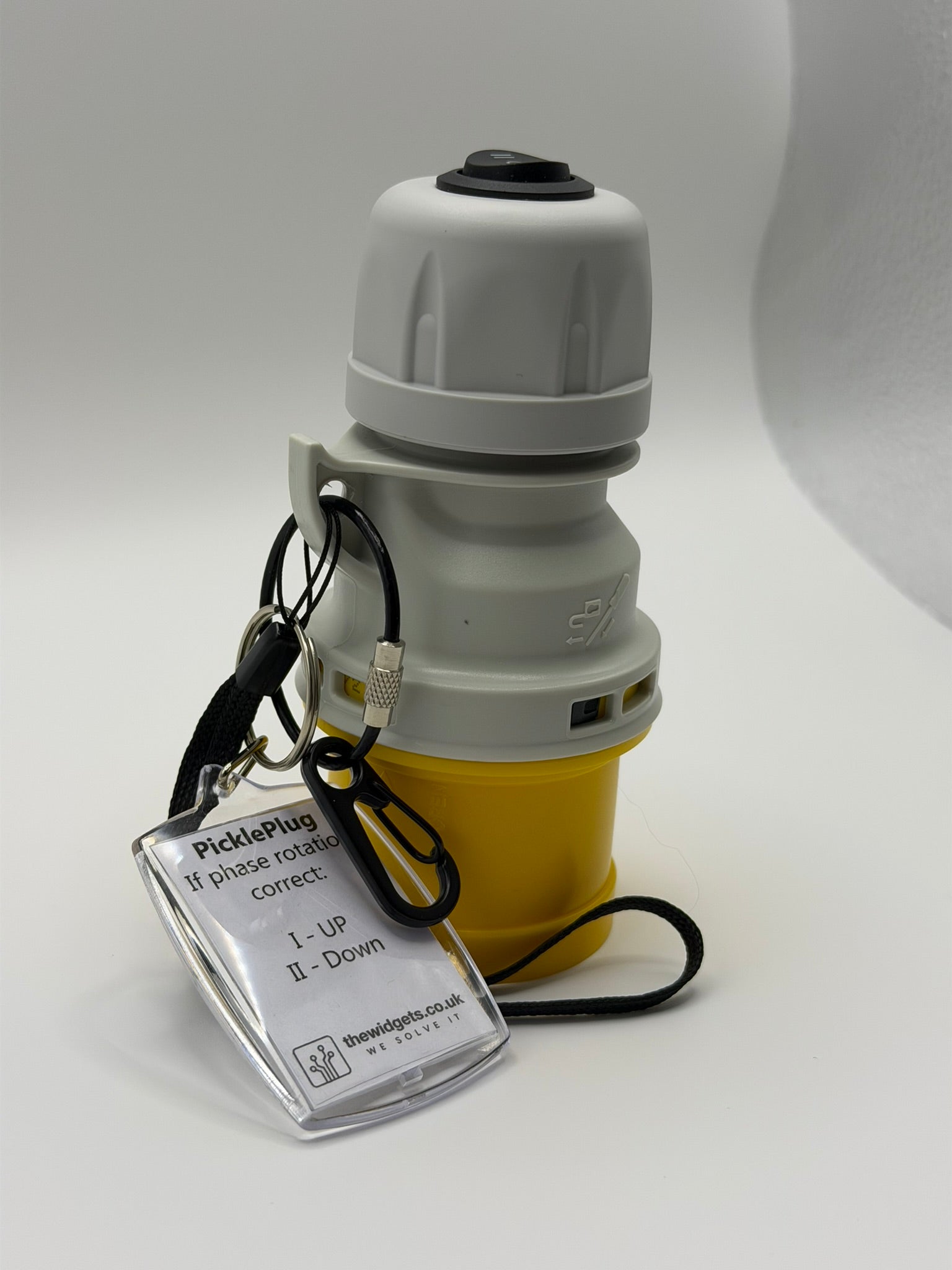

The PicklePlug is designed to be kept close at hand throughout load-ins, rigging calls and load-outs. Built into a rugged PCE Shark Series connector, it features a three-position momentary rocker switch for simple UP and DOWN control.

Release the switch in either direction and it automatically returns to the centre OFF position.

Key features

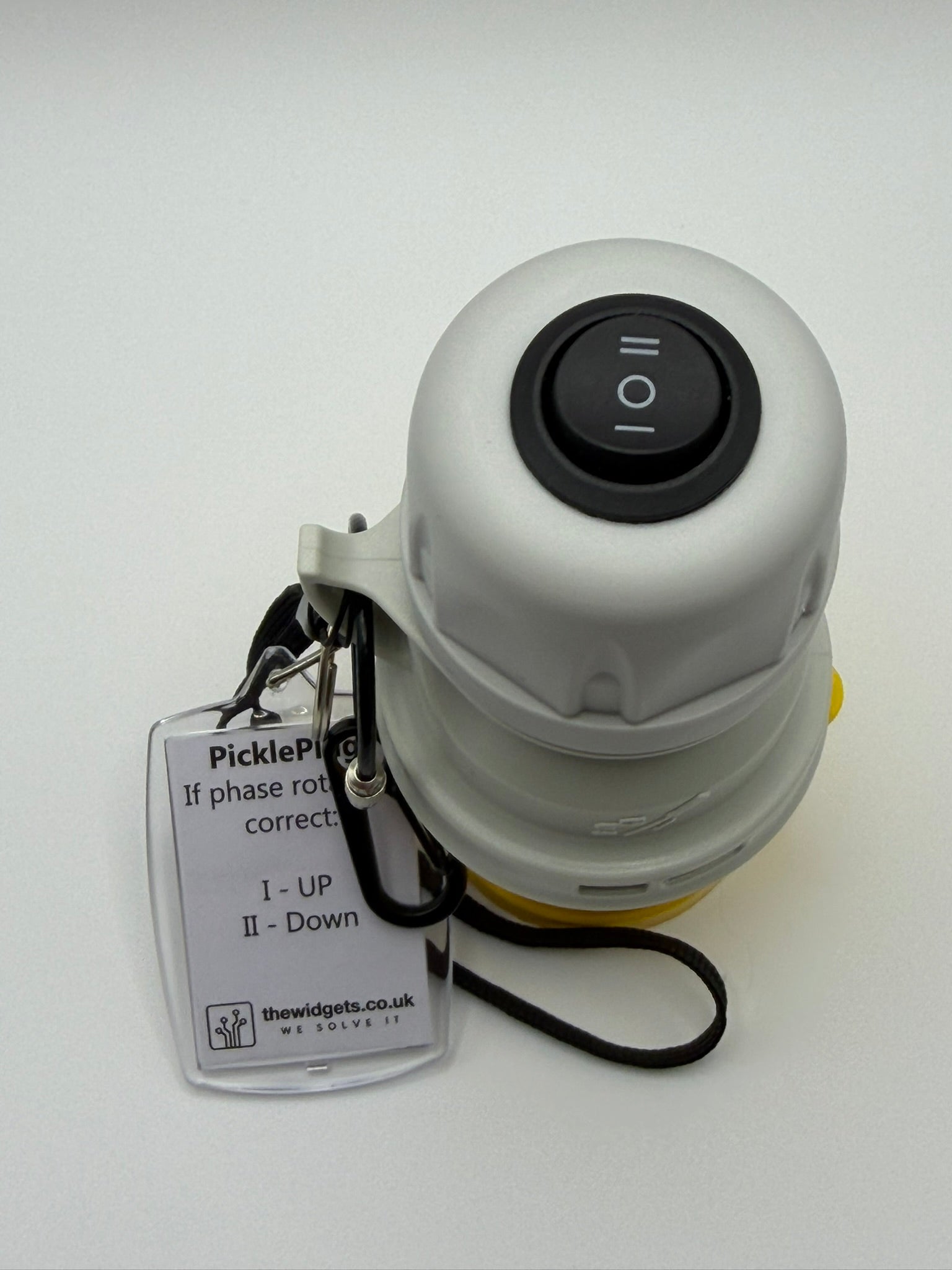

• Momentary UP/OFF/DOWN rocker switch
• Automatically returns to OFF when released
• Rugged PCE Shark Series connector
• 2.5mm² ferruled internal wiring harness
• Lightweight and compact

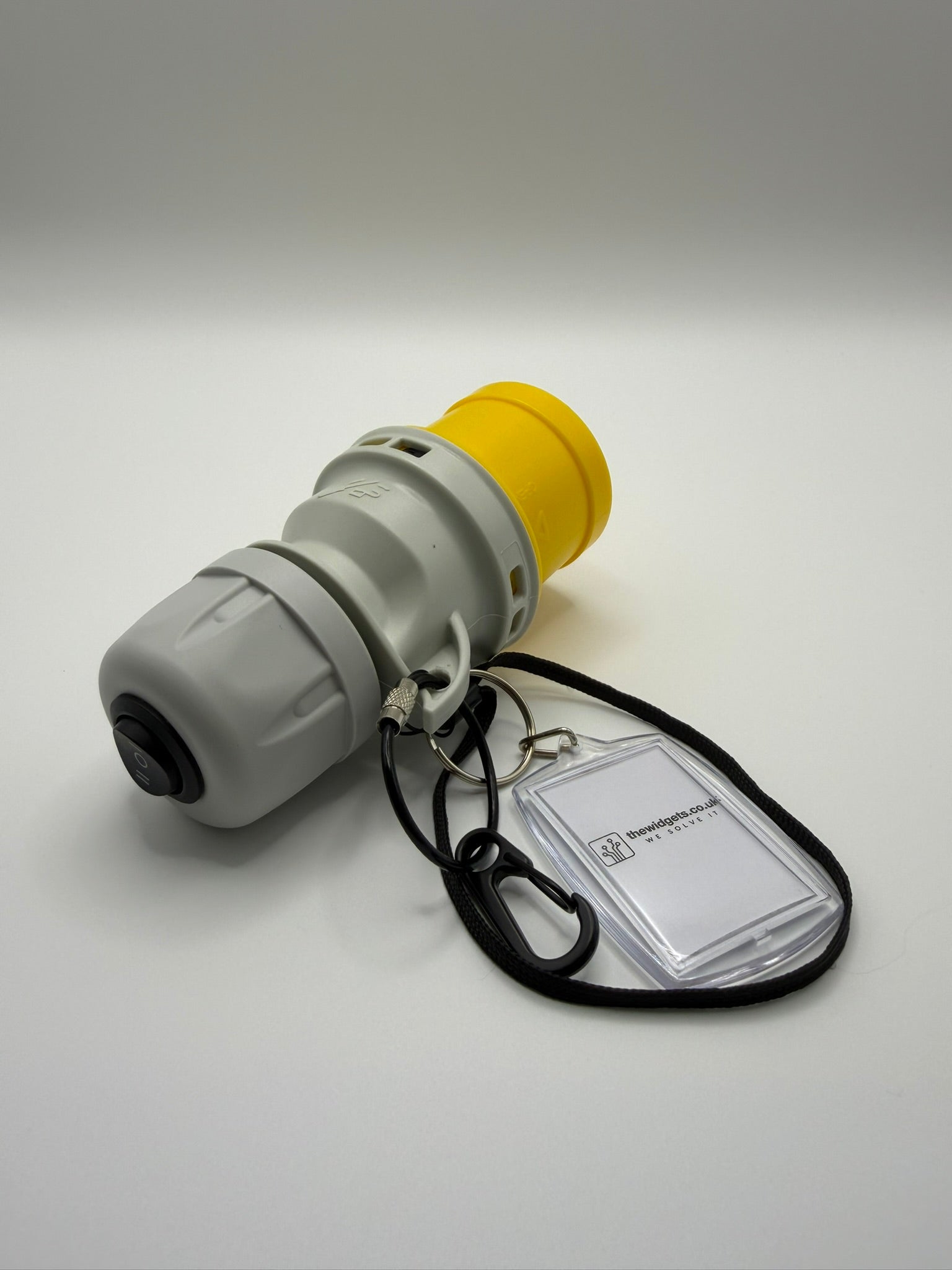

• Integrated keyring attachment
• Easily attached to a belt, harness, tool lanyard or karabiner
• Compatible with many commonly used motor-control cable systems

Technical specifications

• Connector: PCE Shark Series
• Switch: Three-position momentary rocker
• Control positions: UP/OFF/DOWN
• Voltage rating: 125V AC
• Ingress protection: IP20
• Typical operating temperature: approximately +25°C
• Intended for temporary control use only
• Not suitable for permanent installation

Important safety information

For use by suitably competent personnel only.

Before use, confirm that the PicklePlug is compatible with the motor-control system, connector wiring and control voltage.

Verify correct operation and direction using a correctly phased hoist before putting the system into service.
